How to Collect Data from Temperature Sensor
Required Tools
Bespoke USB-C cable
Android smartphone (Android 7+)
Stove Temperature Sensor app
Step 1: Connect Device

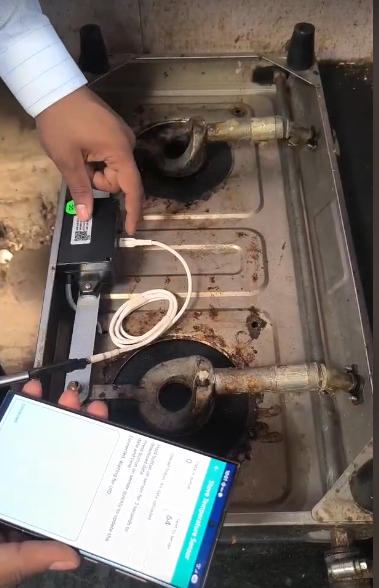

Connect cable to phone and sensor
Verify proper connection
Step 2: Open App
Launch Stove Temperature Sensor app
Tap “Connect to Sensor”

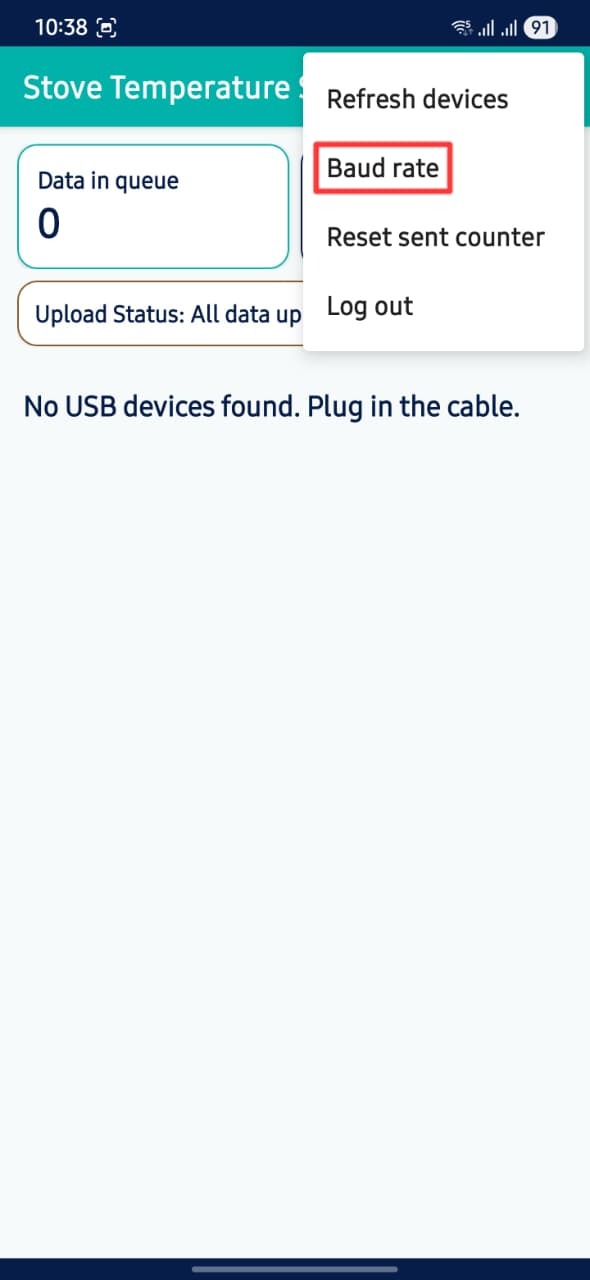

Step 3: Configure Settings

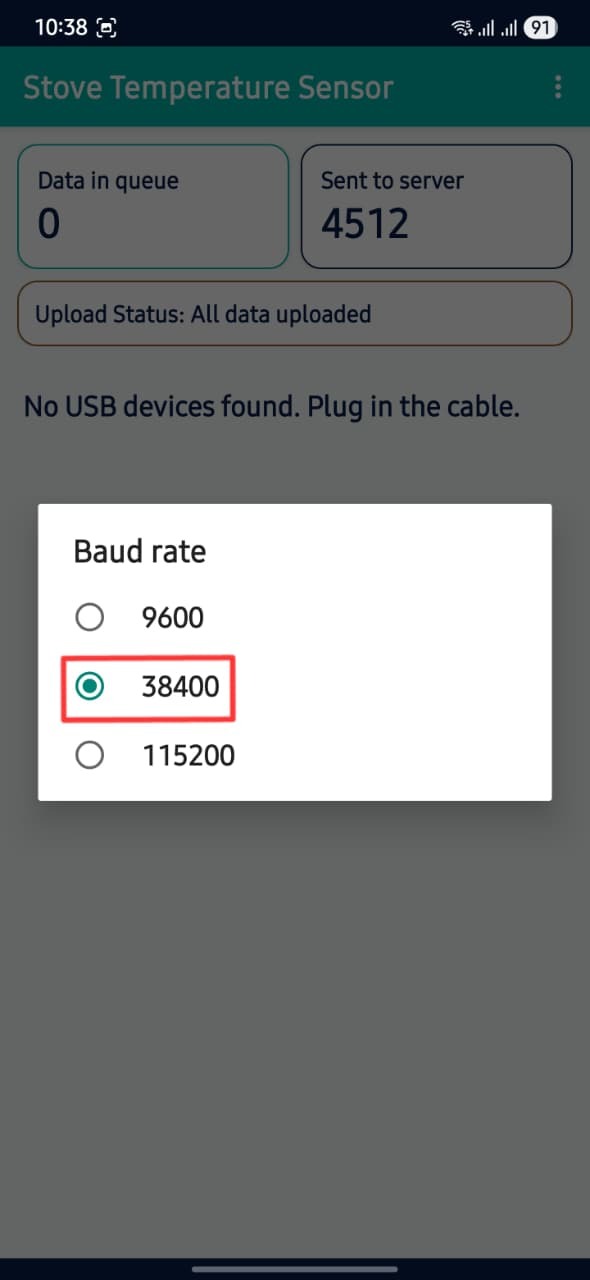

Set baud rate (typically 38400)

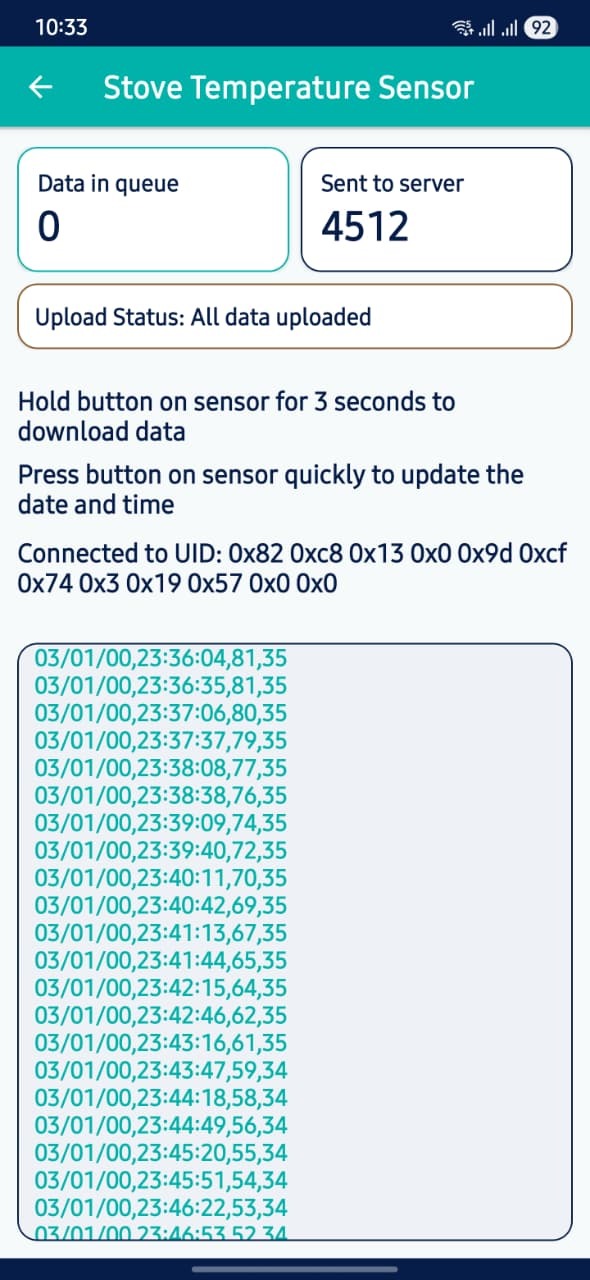

Step 4: Extract Data
Press sensor button for 3 seconds
Confirm data stream appears
Step 5: Data Upload
Data uploads automatically if logged in
Offline data remains queued until synced
