How to use the digital display on smart biogas meter

How to use the digital display on smart biogas meter

The Smart Biogas device includes an OLED display that allows users and technicians to quickly check important device information. The display helps in monitoring device status directly in the field without using the dashboard.

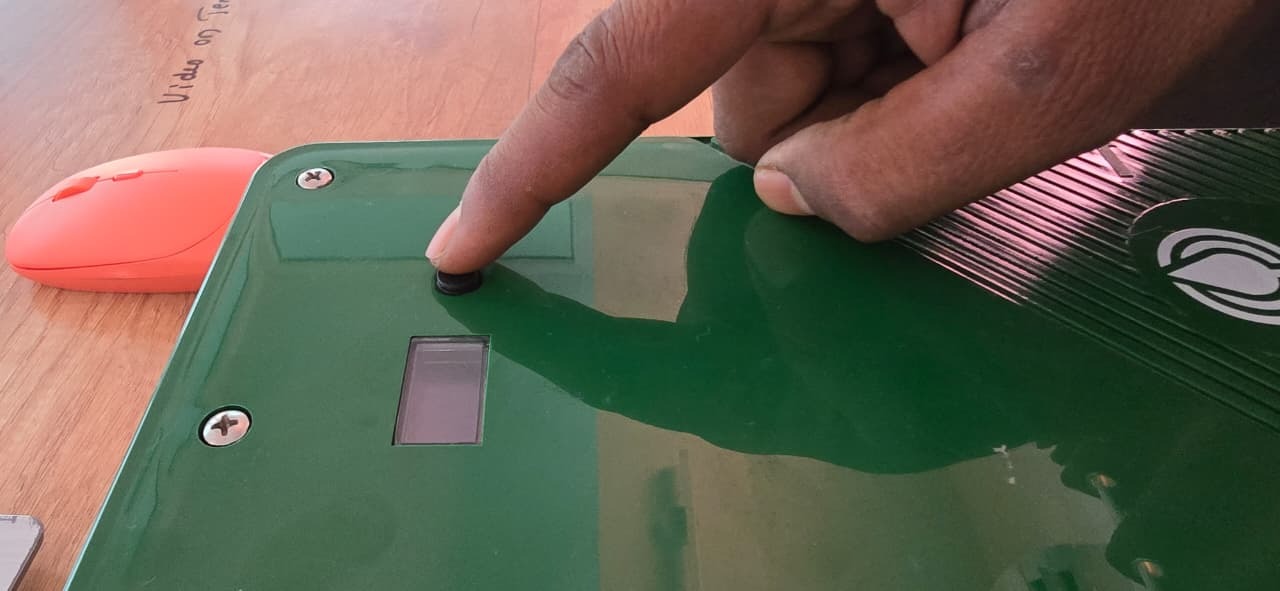

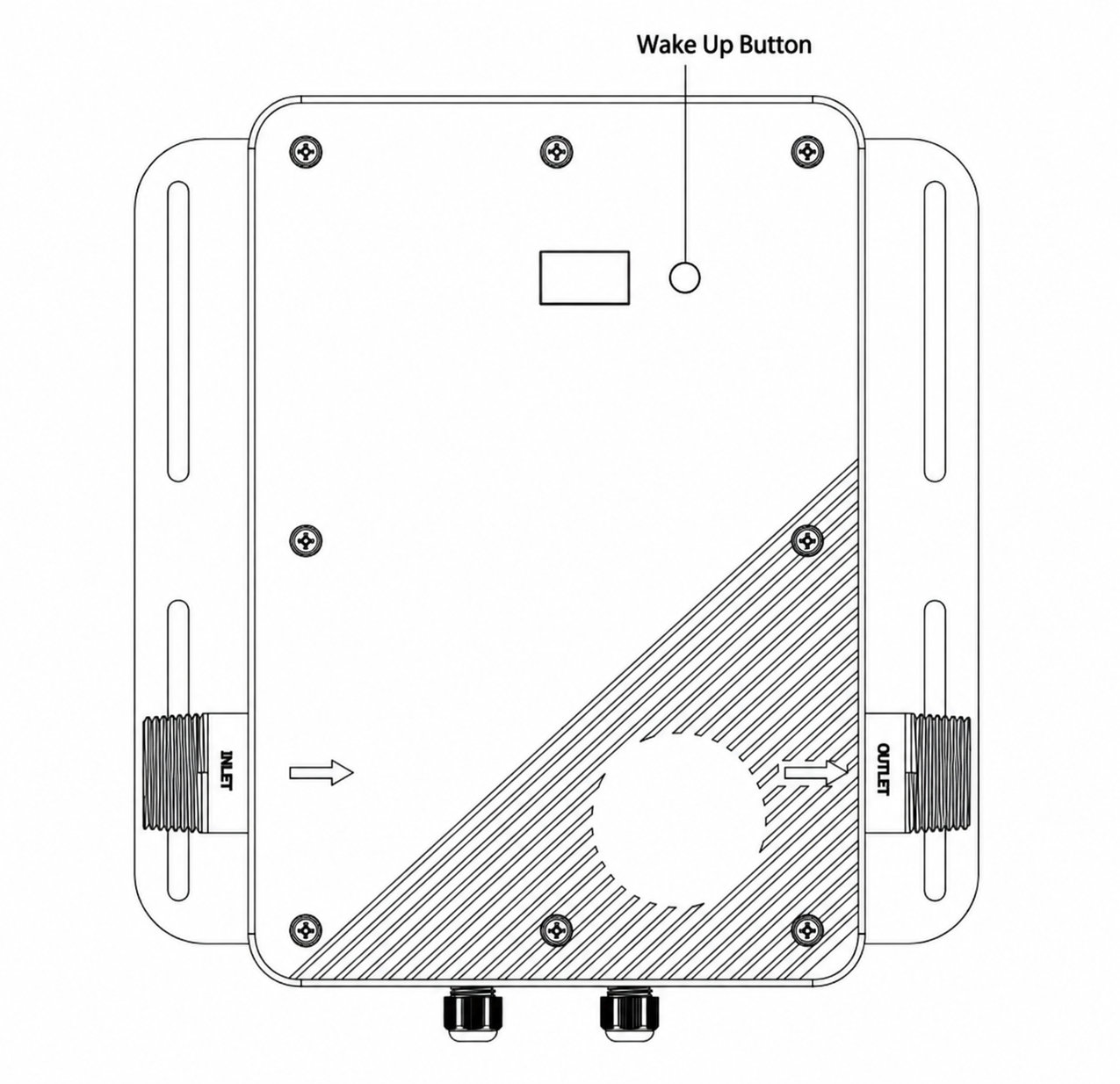

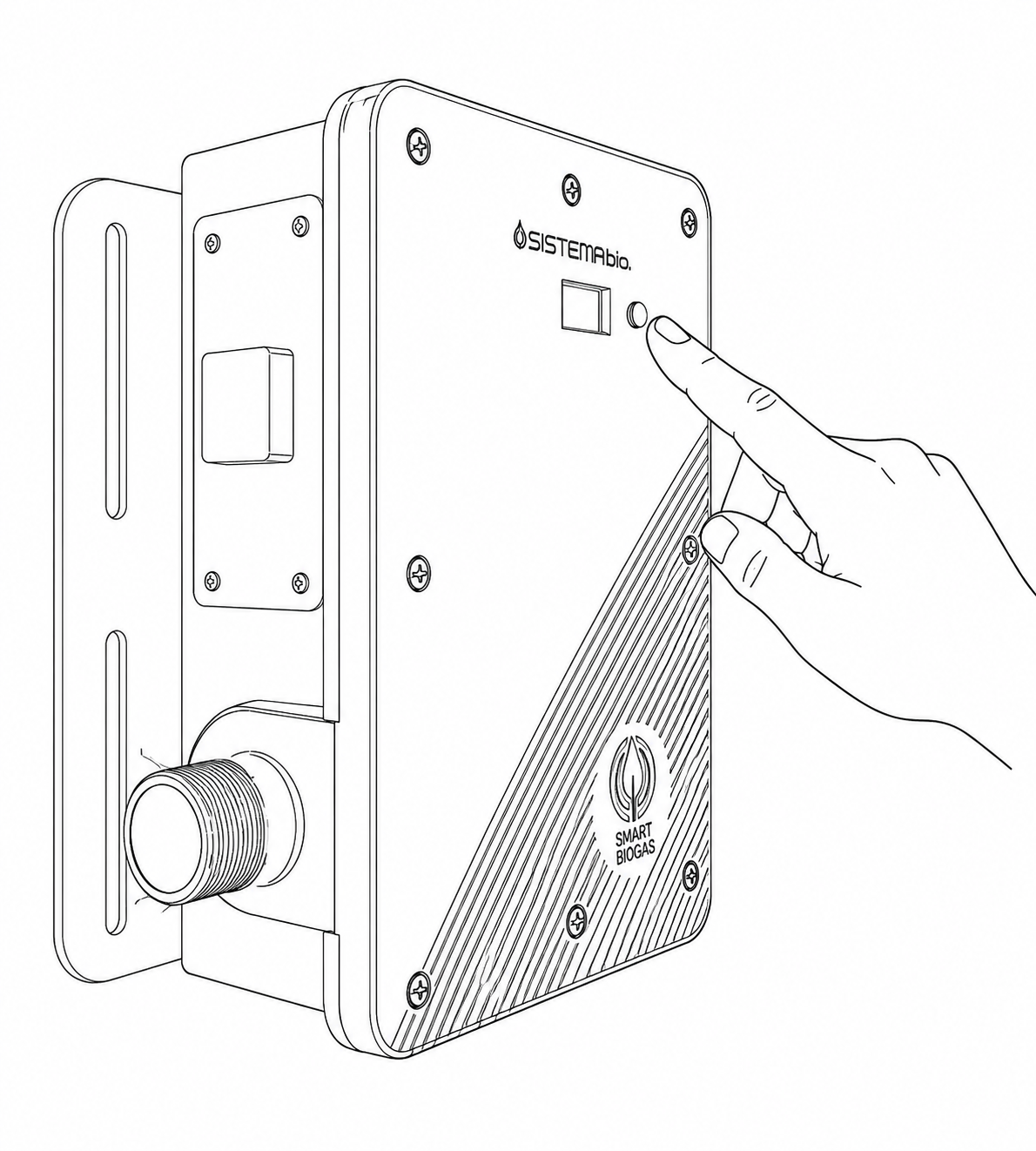

There is a reset / navigation button located beside the display. This button is used to switch between different information screens on the OLED display.





Once you press the switch , the screen will be on for 30 seconds by default and then will be off, this is to save power, if you require to change the default time , please write to support@smartbiogas.io

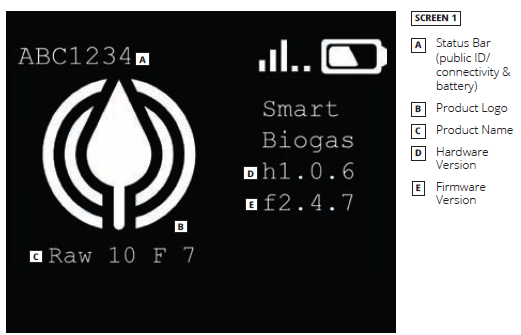

Screen 1

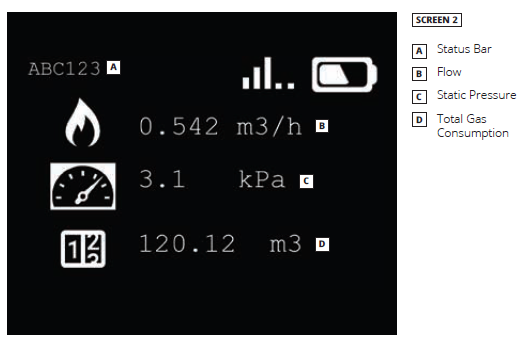

Screen 2

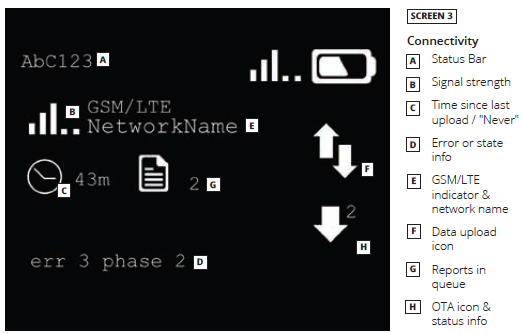

Screen 3

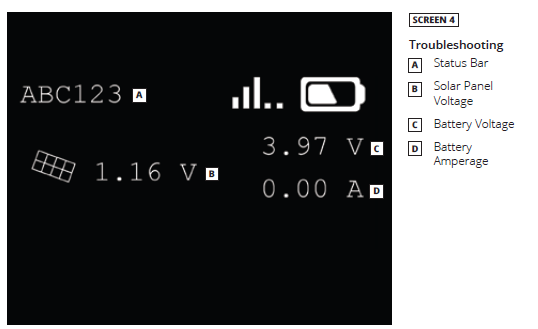

Screen 4
