Solar Panel

General specifications

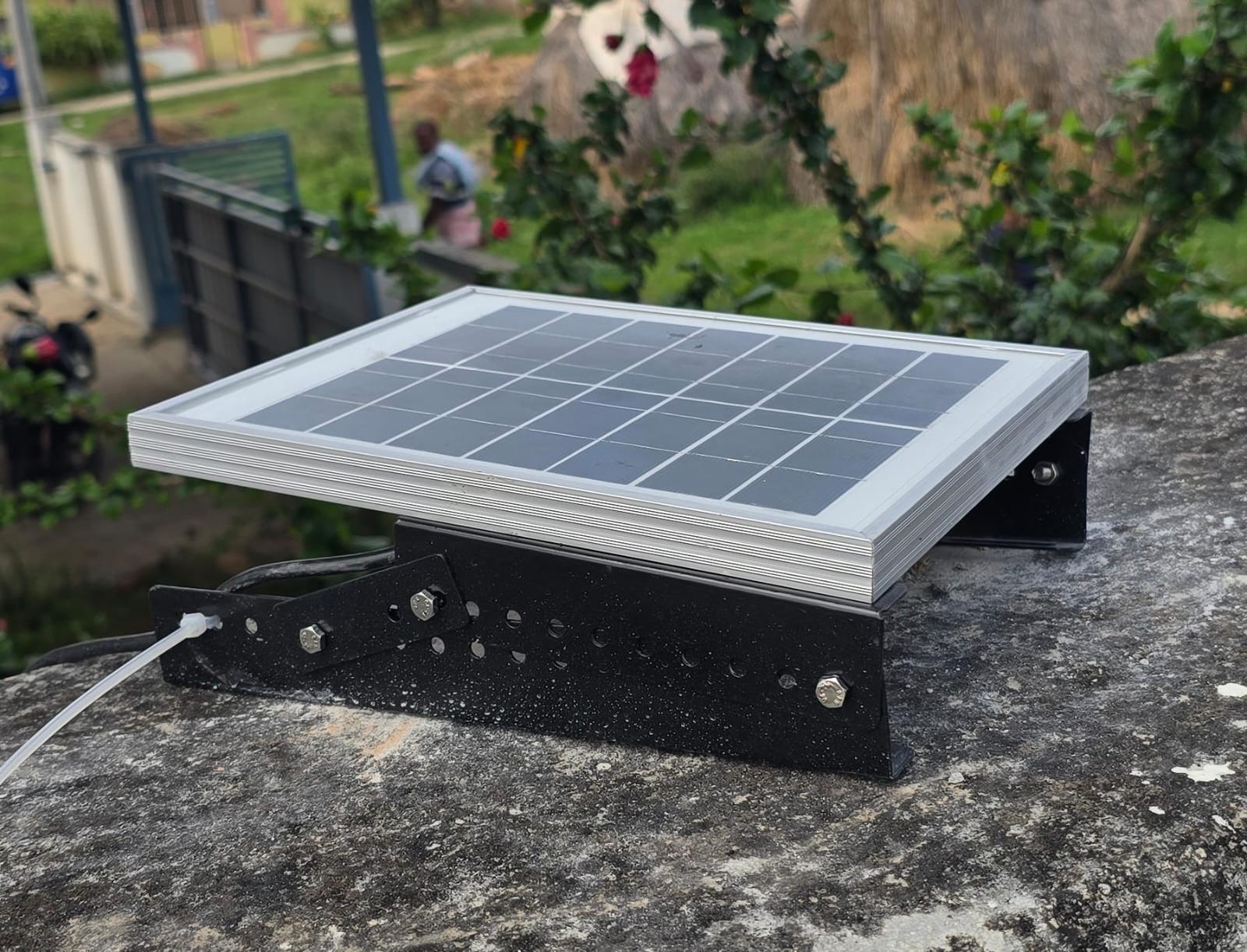

We supply a 6W solar panel with Smart Biogas devices to charge the battery. The cable length is 4m.

On a good day, this panel should charge the battery from flat to full within 5 hours.

If you are in an area with very low solar irradiance, please get in touch and we can supply a larger panel.

Positioning: Depending on where you are in the world, the ideal position will change. As a general rule:

If you are within the tropics, the panel should lay close to flat but with a slight incline to allow water and dirt to run off.

If you are in the Northern Hemisphere, it should be tilted to the South

If you are in the Southern Hemisphere, it should be tilted to the North

Specifications can be found below.

Electrical Data: at Standard test condition (STC)*
Maximum power (P) max	6W
Open circuit voltage (V) OC	8.94 V
Short circuit current (I) SC	0.86 A
Voltage at P (V) max mp	7.56 V
Tolerance at Pmax	±3% Wp
Thermal Data:
Temperature coefficient of VOC	-0.3 %/K
Temperature coefficient of ISC	0.057 %/K
Temperature coefficient of Pmax	-0.38 %/K
Normal operating cell temperature	47±2 ºC
Mechanical Data:
Cell type	Multi Crystalline
Solar cell per module	16
Poly Carbonate dimensions L x W x T, cm	24.5 x 19 x 2.5
Weight (gm) with 4m wire	865

I live in a less sunny area, how does the device work? Once the battery gets fully charged it can last for 3 days without sun. However, if you still find the unit is insufficiently powered get in touch with us at support@smartbiogas.io
